INDUCTION HEATERS
MEDIUM FREQUENCY BEARING HEATERS (3-5 kW, 400 Hz)
Product Specification:
Power- 3 KW/5 KW
Usage- Heating I.D. of bearings to around 120 degree C to fit shaft easily
Applications:
Bearing heating
Product Description:
The unit is provided with 2-3 yokes of different sizes to suit I.D. of bearings for inserting the bearings on to the yoke.
Unit works on 240 V AC, 1 phase or 415 volts 3 phase. Temperature sensor indicates the actual temperature of I.D. of bearing as well as the set temperature. A buzzer sounds when the actual temperature reaches set temperature.
Specifications:
I.D. Minimum (25 mm) & Maximum (100 mm) – Specifies the inner diameter (I.D.) range of the component, ensuring it fits within standard sizes from 25 mm to 100 mm.
For I.D. more than 100 mm, customized solutions are available – Indicates that for inner diameters exceeding 100 mm, tailored or special designs can be provided to meet specific requirements.
High Frequency Bearing Heaters (5-20 kW, 20 kHz)
Product Details:
These units are similar to units described abovebut compact, silent, and portable.

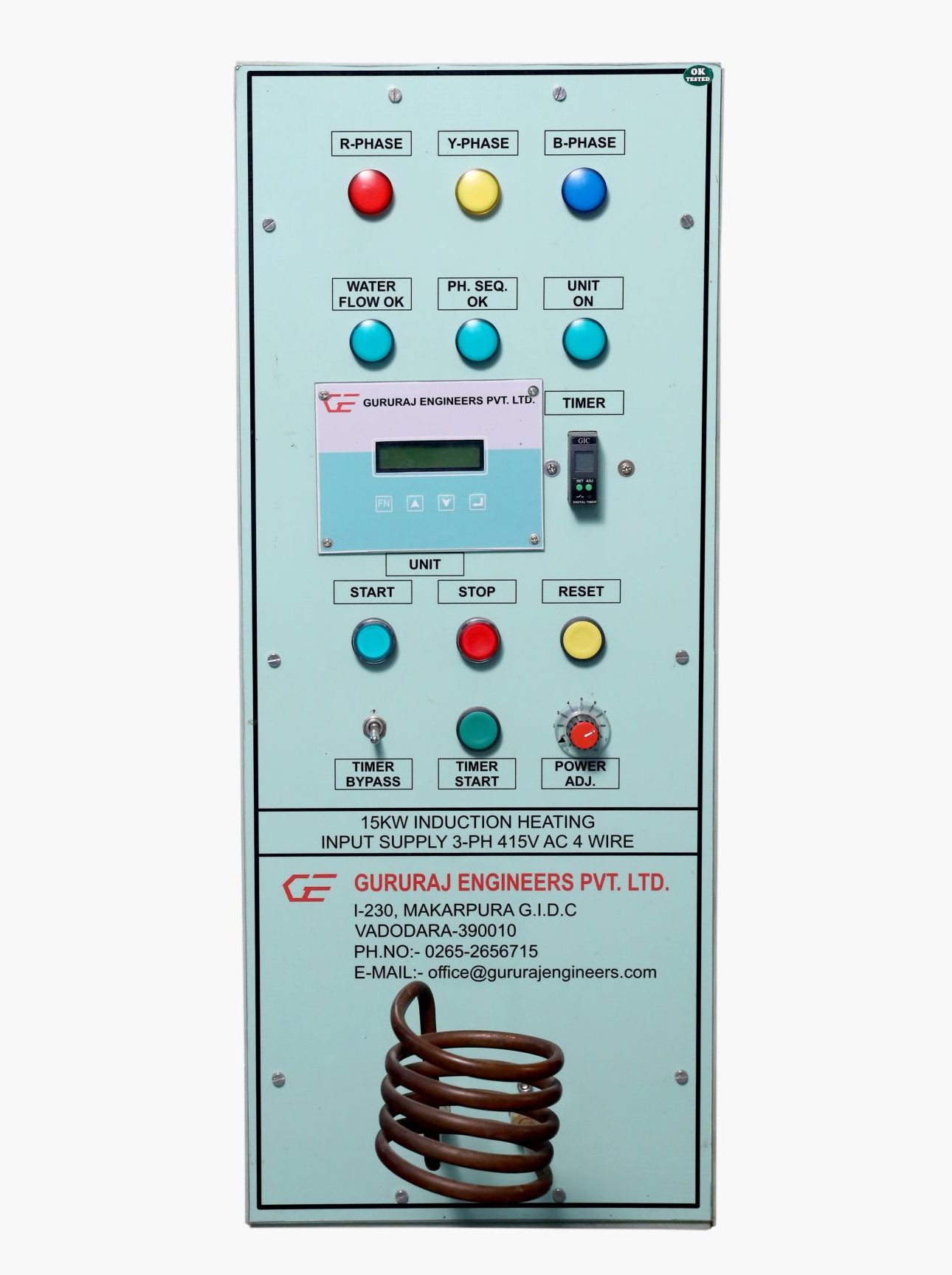

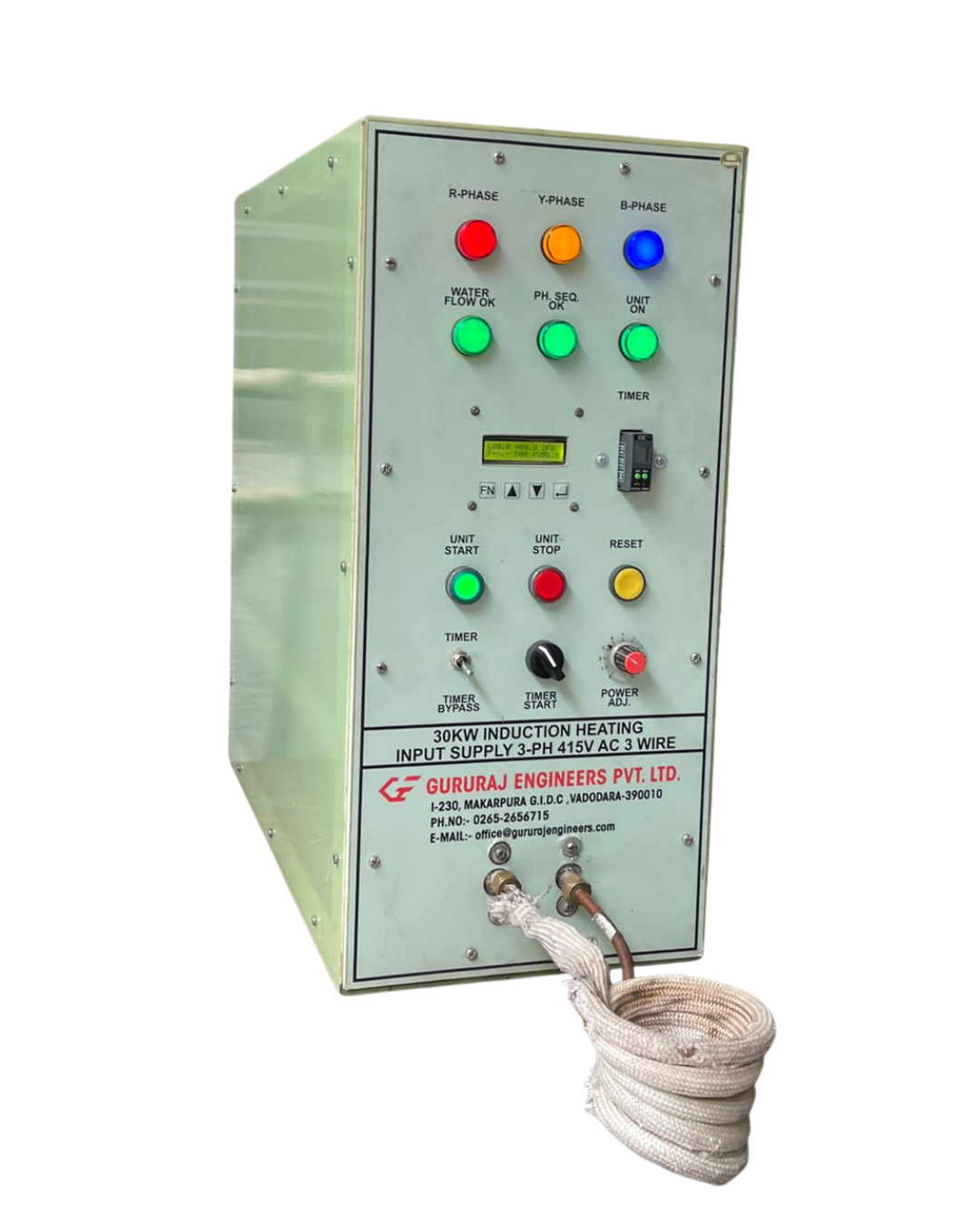

High Frequency Induction Heating/Brazing (10-30 kW, 20kHz)
Product Details:
These units are used for heating any metal like, M.S., S.S, Copper, and others of various shapes and sizes quickly.
The object to be heated or brazed is inserted in the coil, generally water cooled, connected to the control unit.
The power output of the unit is controlled to control the heating process.
Customized Induction Heater for various industrial/commercial applications (10--30 kW, 20kHz)
Product Details:
Specifications to be filled up by the user
- Maximum size of bearing to be heated
- Minimum size of bearing to be heated
- Temperature range
- Time to reach temperature Minimum to Maximum
- Number of bearings per hour to be heated
