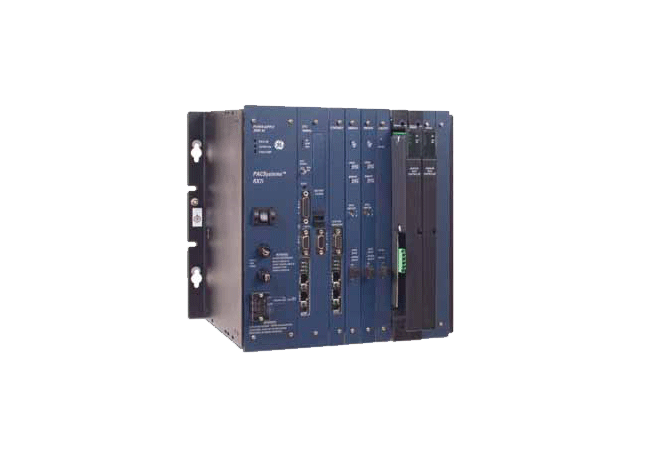

Built on a standard embedded open architecture, the PACSystems RX7i is the first member of the groundbreaking PACSystems family of programmable controllers (PACs). The RX7i features a single control engine and universal programming environment to provide application portability across multiple hardware platforms. Designed to address mid- to high-end applications for OEMs, integrators, and end users, the RX7i is ideally suited for integrated solutions that require open architecture, large memory, distributed I/O and high performance.
- Pentium® CPUs for your every need, from Celeron 300mHz to M Class 1.8 Ghz
- A VME64 Backplane providing up to four times the bandwidth of existing Series 90-70 systems
- 10/100 Ethernet built into the CPU, with easy cabling RJ-45 dual ports connected through an auto-sensing switch, so there is no need for additional switches or hubs rack to rack
- Up to 64 MB memory for fast execution, storage of the complete program with all documentation—all in one CPU
- Supports existing Series 90-70 modules and expansion racks, VME modules and GENIUS networks— protecting your hardware investment
Proficy Machine Edition
Proficy Machine Edition is an advanced software environment for the development and maintenance of machine level automation. Visualization, motion control, and execution logic are developed with a single programmer.
