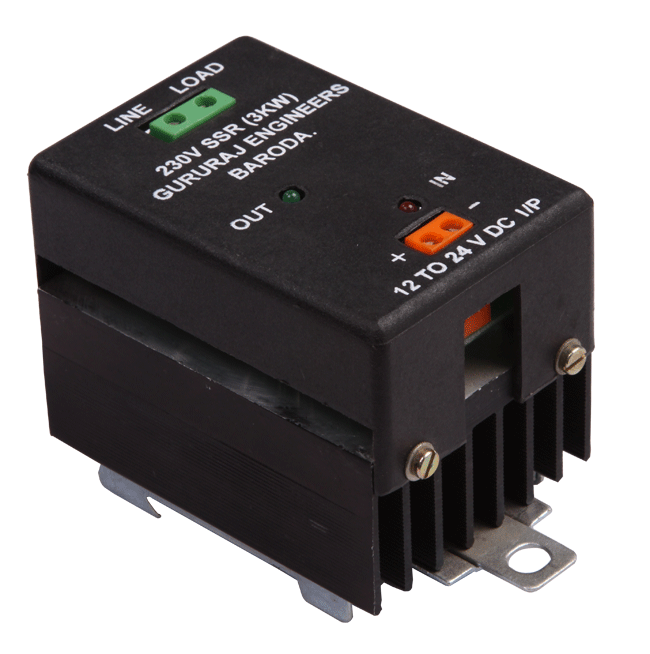

GE Presents Solid State Relays, which are used for controlling electrical heating.

  • Unique Heat Spreader Technlogy
  • Product Available With Heat Sink
  • Solid State Circuit, No Wear and tear
  • Optically Isolted Circuit
  • Available in 1/2/4 Channels
  • Compact in Size Compared to Contactors
  • LED indication for easy diagnostics
  • Operating Temperature -20 to 80 C
  • Model For 110 V AC Load available
  • Longer Life Roughly 10 to the power 8
  • Operates even in area of High Vibration & Noise
Specification:
Capacity 1/2/3/4 KW
Supply Voltage 230 VAC
Maximum Current 16 Amps
Control Voltage 12-24 V DC

Applications:
  • Plastics Extruder Machines
  • Plastic Bag Making Machine
  • Injection Moulding Machine
  • Temperature Control in Various Processes
  • Oven Control
  • Furnace Control

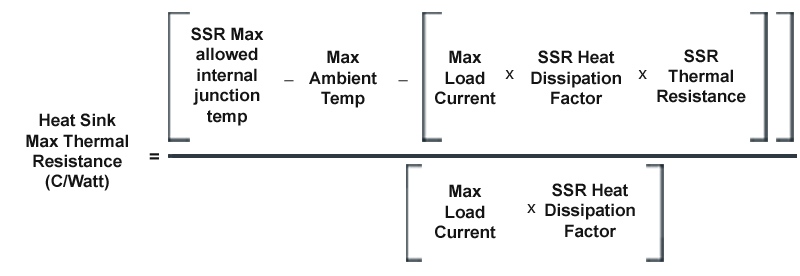

Diagram:
SSR Diagram
Click on Image to Enlarge
