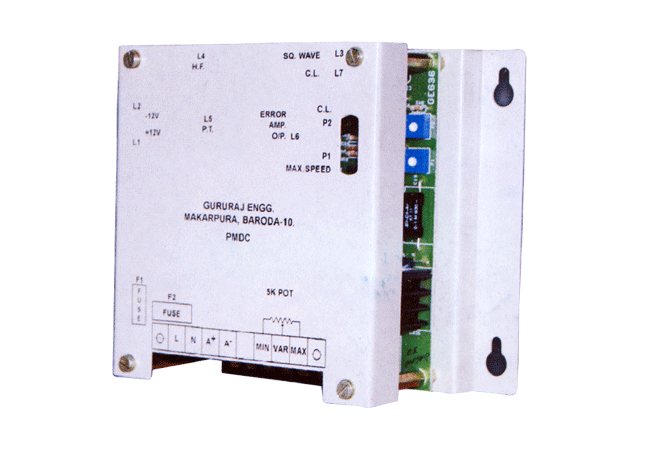

GE presents GE-636, a very stable, reliable and optically isolated Compact D.C. Drive, which can be used up to 2 HP D.C. motor. This can accept different type of inputs like Start, Stop, Inch, 0-5 V/ 0-10 V / 4-20 mA as reference. The compact thyristor controller D.C. Drive can work with permanent magnet DC motors. The speed of a DC motor is directly proportional to the armature voltage. To vary the speed of a PMDC motor the armature voltage has to be varied from zero to the rated voltage of the armature.

• LED indication for quick fault finding / status indication
• Soft start
• Field fail protection
• Armature current limit / Trip
• Fuse Protection
• 1 hp/ 2 hp selection through link
• Normal / PMDC motor selection through 1 link
• RUN (start) stop, inch selection through optical isolator so that command from PLC / external source can be given to the drive

Specification:

Range 0.14 HP to 2 HP Input Start, Stop, Inch, (Digital) reference (Analogue) 0-5 V / 0-10 V / 4-20 mA Indication LED for different faults Supply 230 V ˜± 10% 50 Hz Output Armature - Variable 0-220 V DC Arm. Current 8A Maximum Cooling Natural Air Cooling Dimensions W : 175 mm X H : 140 mm X D : 75 mm upto 2 HP Mounting Base plate mounting (Inside Panel)
