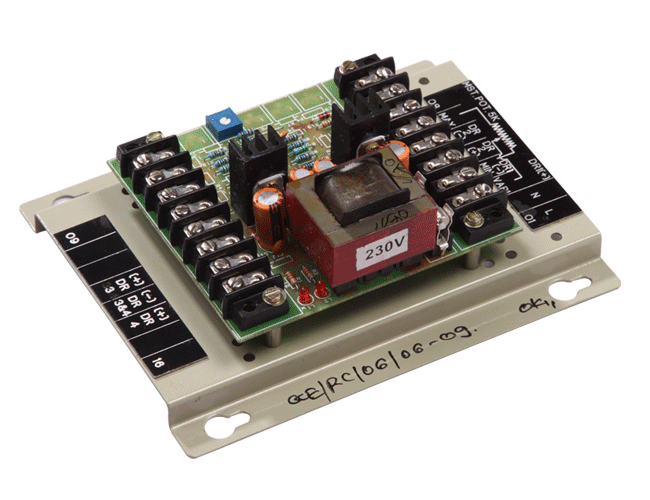

GE Presents Ratio Card Unit which are used for getting single or multiple variable ratio outputs as per variable master input voltage.

  • Power On Indication
  • Different ranges of input voltage like 0-24V DC or 0-10V DC or 0-5V DC or 4-20 mA available
  • Multiple outputs to control different drives possible
  • One Master and Multiple Ratio Outputs Available
  • Each Ratio Output can be Set Independently
  • Pot For Each Ratio Output For Easy Setting & Operation
  • Green Channel Mount
  • Unit With Acrylic Cover for Protection
  • PLC Analog O/P Interface Possible
  • Low Cost
  • Inbuilt Fuse for Protection
  • Operating Temperature -20 to 50 C
  • Model For 110 V AC Supply available
Supply Voltage 230 VAC or 415 VAC
Input 0-5 V DC
0-10 V DC
0-24 V DC
Output 0-5 V DC
0-10 V DC
0-24 V DC
Input Channels 1 Master
Output Channels 2/3/4/8 Channels Available.
  • Packaging Machine
  • Material Handling Equipment
  • Synchronising Multiple AC Drives
  • Plastic Extruder Machines
  • Special Purpose Machines
